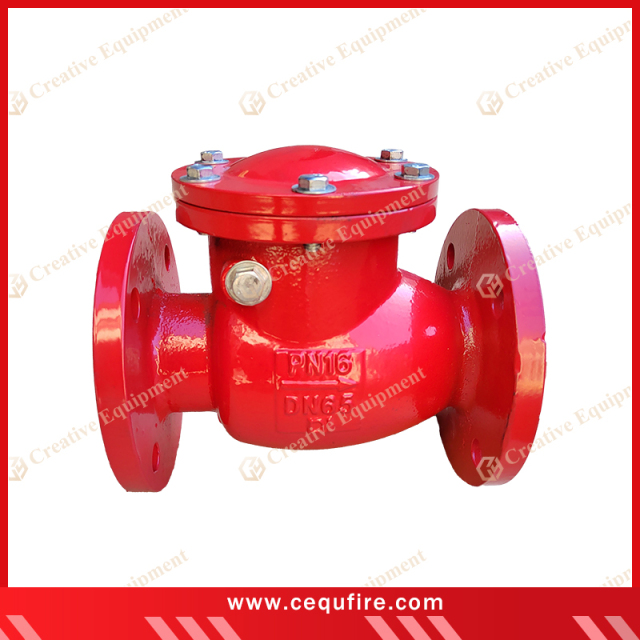

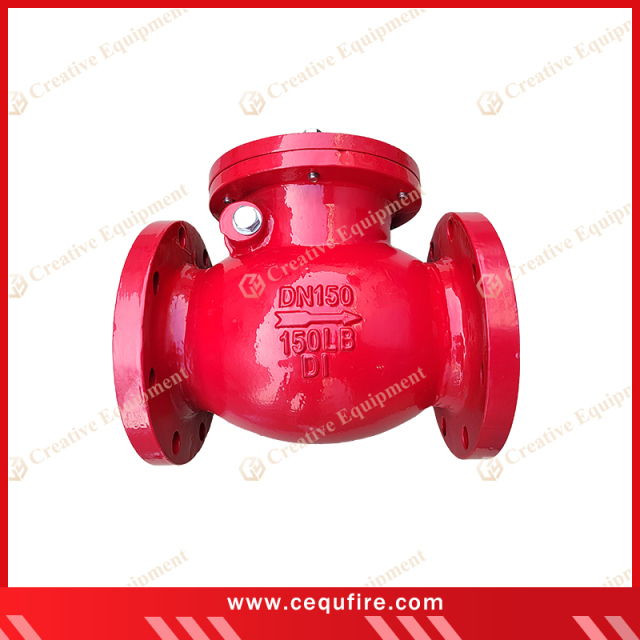

Swing Check Valve Flange End is a one-way valve designed to allow fluid flow in one direction and prevent reflow. It operates automatically using the flow pressure of the fluid and features a flange connection for strong sealing and convenient installation. Ideal for water supply, drainage, and HVAC systems.
|
Specification |
|
|
Dimensions |
3” ~ 8” (DN80 ~ DN200) |
|
Connection Type |
Flange |
|
Pressure Rating |
PN16 |
|
Working Temperature |
4℃ ~ 70 ℃ |
|
Color |
Red |
|
Valve Material List |
|
|
Body & Cover |
Ductile Iron QT450 |
|
Sealing Gasket |
EPDM , Brass |
|
Coating details |
Epoxy resin coating |
