Valve Type
|

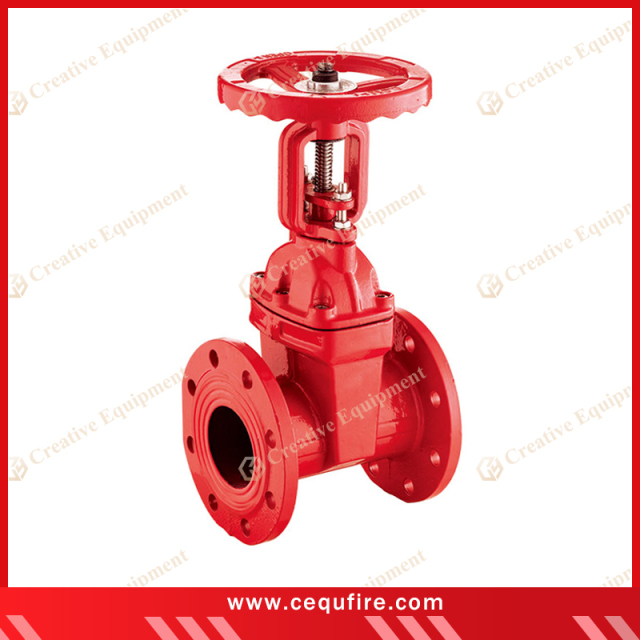

OS&Y Gate Valve
|
|
Body Material
|
Ductile Iron
|
|
Connection Type
|
Flanged (DIN / ANSI)
|
|
Size Range
|
2" to 12" (DN50–DN300)
|
|
Coating
|
Epoxy resin coating
|
|
Stem
|
Rising Stem, Stainless Steel
|
- - Rising stem design allows visual confirmation of open/closed status.
- - Durable flanged ends for secure pipeline integration.
- - Corrosion-resistant epoxy coating enhances long-term durability.
- - Compatible with fire protection systems (UL/FM approved options available).
- - Full bore ensures minimal pressure loss and high flow efficiency.
- - Robust construction for demanding industrial applications.
- - Low operating torque for smooth and easy operation.
- - Anti-corrosion stainless steel stem with strong mechanical properties.
- - Easy maintenance with replaceable internal parts.
- - Widely accepted design for global pipeline specifications.
- Bubble Bag
- Carton Box
- Pallet
|
 |
- FOB, CIF, CNF, DAP, DDP
- By Sea or Air
- Supports FCL and LCL
|
Q1: What does OS&Y stand for?
A1: OS&Y means Outside Screw and Yoke, indicating a rising stem design for visible operation status.
Q2: Can this valve be used in underground installations?
A2: It is primarily designed for aboveground use to allow visual monitoring, but can be used underground with proper enclosures.
