Dry Pillar Hydrant (Type 2)

Name: Dry Pillar Hydrant (Type 2)
Brand: Creative Fire Equipment
Availability: InStock
Rating: 5 (1 reviews)

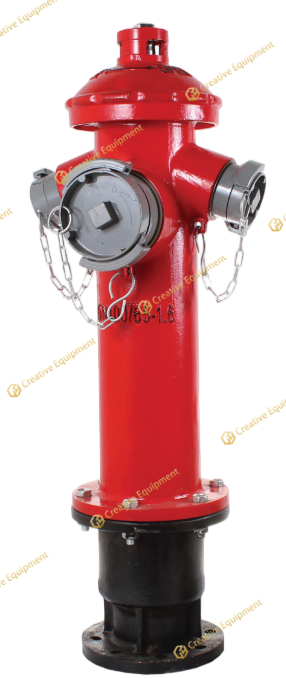

The Dry Barrel Fire Hydrant DN100 is an above-ground hydrant designed for reliable water supply in firefighting systems. With its dry design, the hydrant barrel remains empty until activated, preventing freezing damage and ensuring safety in low-temperature environments. Built for municipal, commercial, and industrial installations, this hydrant provides firefighters with immediate access to a pressurized water source during emergencies.

Get A Quote

Product Overview

Product Name	Dry Pillar Hydrant DN100
Type	Dry Barrel / Dry Pillar Type
Material	Ductile Iron
Outlet Type	Female Instantaneous / Flanged / Threaded
Inlet Type	Flanged
Size	DN100 / 2*DN65
Working Pressure	16 Bar
Coating	Red epoxy powder coating or customized

- Always charged with water for quick emergency use
- Rugged and weather-resistant construction
- Multiple outlet types available for hose connection
- Easy access with lockable valve caps
- Anti-corrosion coating for long outdoor service
- Compatible with most fire hydrant systems worldwide

Municipal fire water networks in urban and rural areas
Industrial plants, chemical storage areas, and refineries
Ports, airports, railway stations, and logistics hubs
Cold-weather installations where freezing protection is required
Large commercial complexes, warehouses, and factories

Packaging:
Bubble Bag	Wooden Box

Q1: Why choose a dry barrel hydrant instead of a wet hydrant?
A: A dry hydrant drains automatically when closed, making it ideal for areas with freezing risks. Wet hydrants hold water inside and are suitable for warmer climates.

Q2: Can the height and outlet configuration be customized?
A: Yes, both the overall height and the outlet type (Barcelona, Guillenmin, Storz, etc.) can be customized according to project requirements.

Q3: How is the hydrant protected against corrosion?
A: Each hydrant is coated internally and externally with high-quality epoxy for long-term corrosion resistance.

Q4: Can you provide hydrants with customer-specific coatings or markings?
A: Yes, we offer customized colors, coatings, and logo markings for project or city requirements.
