Dry Pillar Hydrant (Type 1)

Name: Dry Pillar Hydrant (Type 1)
Brand: Creative Fire Equipment
Availability: InStock
Rating: 5 (1 reviews)

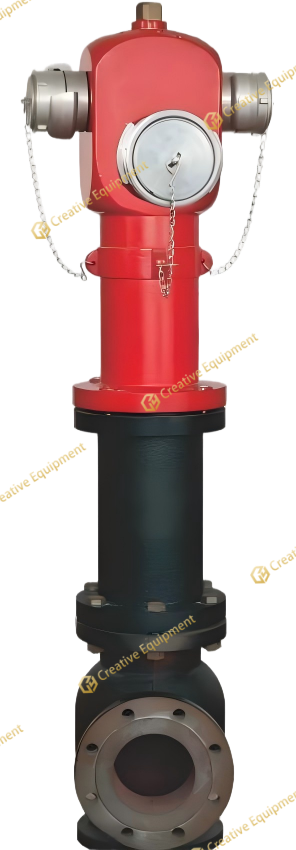

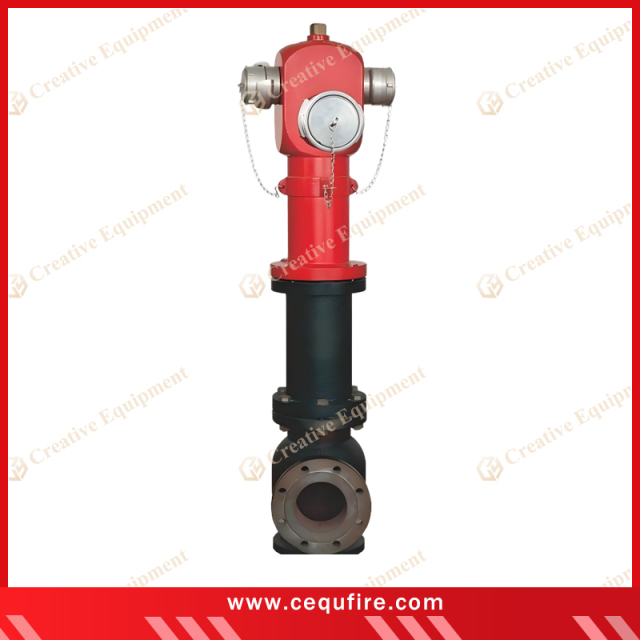

CEQU Dry Pillar Hydrant DN100 is a vertical outdoor fire hydrant designed for water supply in firefighting systems. Its “dry barrel” design keeps water below ground level when not in use, preventing freezing and ensuring reliability in cold climates. The hydrant connects directly to fire trucks or hoses, providing a dependable water source for emergency response in municipal, industrial, and commercial applications.

Get A Quote

Product Overview

Product Name	Dry Pillar Hydrant DN100
Type	Dry Barrel / Dry Pillar Type
Material	Ductile Iron
Outlet Type	Female Instantaneous / Flanged / Threaded
Inlet Type	Flanged
Size	DN100 / 2*DN65
Working Pressure	16 Bar
Coating	Red epoxy powder coating or customized

- Always charged with water for quick emergency use
- Rugged and weather-resistant construction
- Multiple outlet types available for hose connection
- Easy access with lockable valve caps
- Anti-corrosion coating for long outdoor service
- Compatible with most fire hydrant systems worldwide

Municipal firefighting water networks
Industrial facilities and oil depots
Commercial buildings and logistics centers
Power plants and chemical plants
Airports, railway stations, and seaports
Cold climate regions with risk of pipe freezing

Packaging:

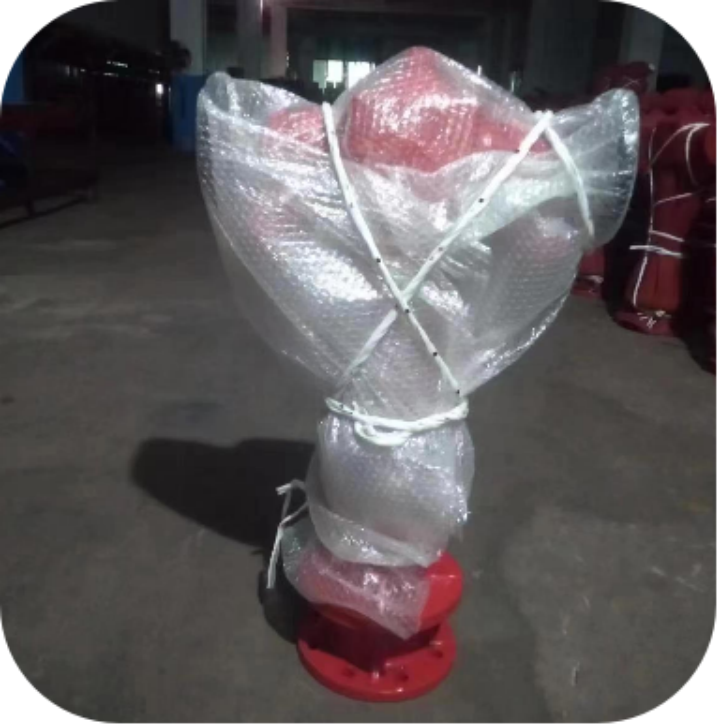

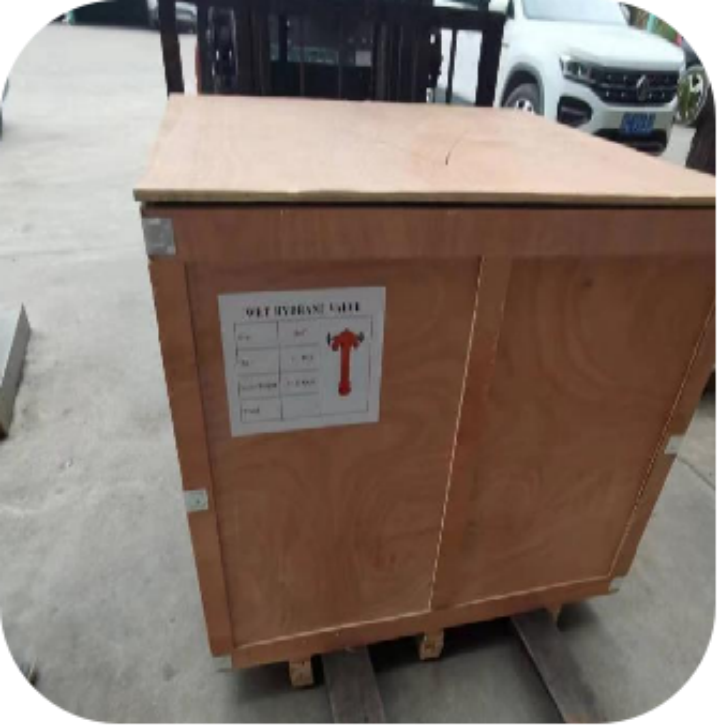

Bubble Bag	Wooden Box

Q1 Can I customize the color and logo?
A: Yes, OEM and branding customization are supported.

Q2: What is the difference between dry and wet hydrant valves?
A: Dry hydrants are only filled when activated, while wet hydrants are always filled with water and ready for use.

Q3: Can you provide different outlet couplings?
A: Yes, outlets can be supplied with Barcelona, Guillenmin, Storz, or customized connections.

Q4: Is the hydrant body corrosion-resistant?
A: Yes, the hydrant is coated with fusion-bonded epoxy for enhanced durability and corrosion resistance.
