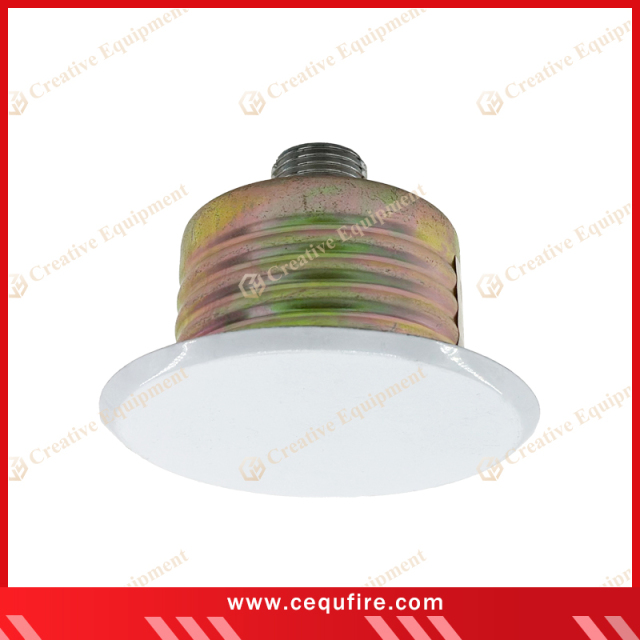

CEQU Concealed Sprinkler is a premium fire protection device designed to blend seamlessly with modern interiors. Hidden behind a decorative cover plate, it activates instantly during fire emergencies, offering both safety and aesthetic appeal. Ideal for buildings where clean ceiling lines and discreet fire safety are essential.
|
Style: |
Concealed Fire Sprinkler |
|
Sensitivity: |
Standard Response |
|
Thread: |
NPT 1/2” |
|
Nominal K Factor: |
5.6 |
|
Sprinkler Temperature: |
155°F (68°C) -- Red Bulb |
|
Max Pressure: |
250 psi (17.2 bar) |
| Sprinkler Type | Concealed pendant type |
| Spray Pattern | Uniform coverage |
| Maximum Coverage Area | Up to 12m² (varies with room layout and ceiling height) |
| Corrosion Resistance | Yes (custom finishes available) |
| Installation Position | Ceiling-mounted |
| Working Pressure Range | 1.4 ~ 12 bar |
|
 |
